Part Name: Funnel
No. of Cavity: 1*2
Steel for cavity & core: 1.2343 HRC52~54
Resin: POM
Shrinkage: 1.9%
Hotrunner Brand: Moldmaster
Part Size: 90*45*89 MM
Tooling Size: 460*500*473 MM
Tool Weight: 2542 Kg
Part surface finishing: SPI-B2

Good Designing

Reasonable mold design helped reduce manufacturing and cycle time.

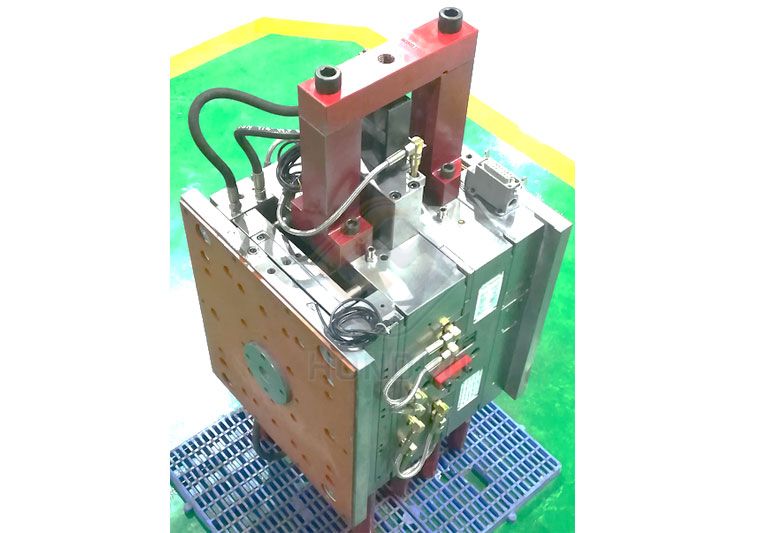

Reduction Cycle Time

Reduction Cycle Time

Optimized cooling lines and both slides with interlock, we designed ejector pins in slides, reduced molding cycle time to 25 seconds from 40 seconds.

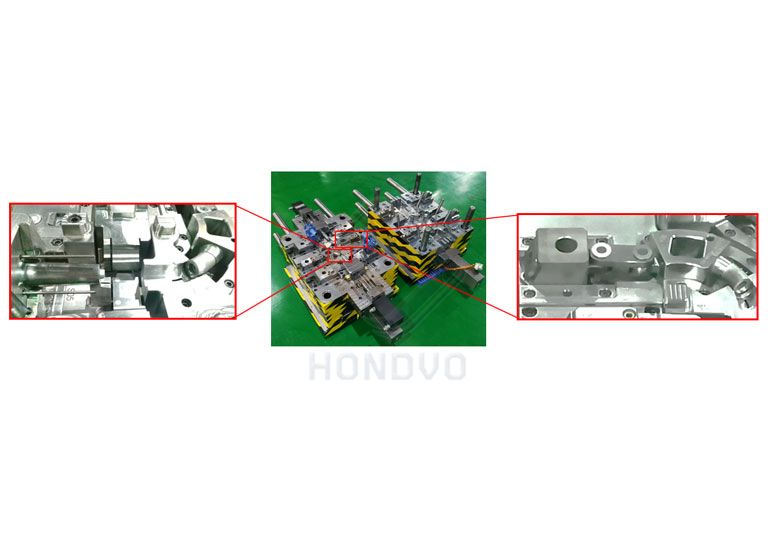

Simplify Mold Structure

Simplify Mold Structure

Designed universal link between slider and bent, reduced mold size sharply, saved cost for client
